TRIO 30 Right for 6x6 Wood Posts | 1 Pack

MSRP: $140.00

SKU: G03030D3RMB1

Liquid error (snippets/product-form line 11): include usage is not allowed in this context


Shopify Secured
Checkout

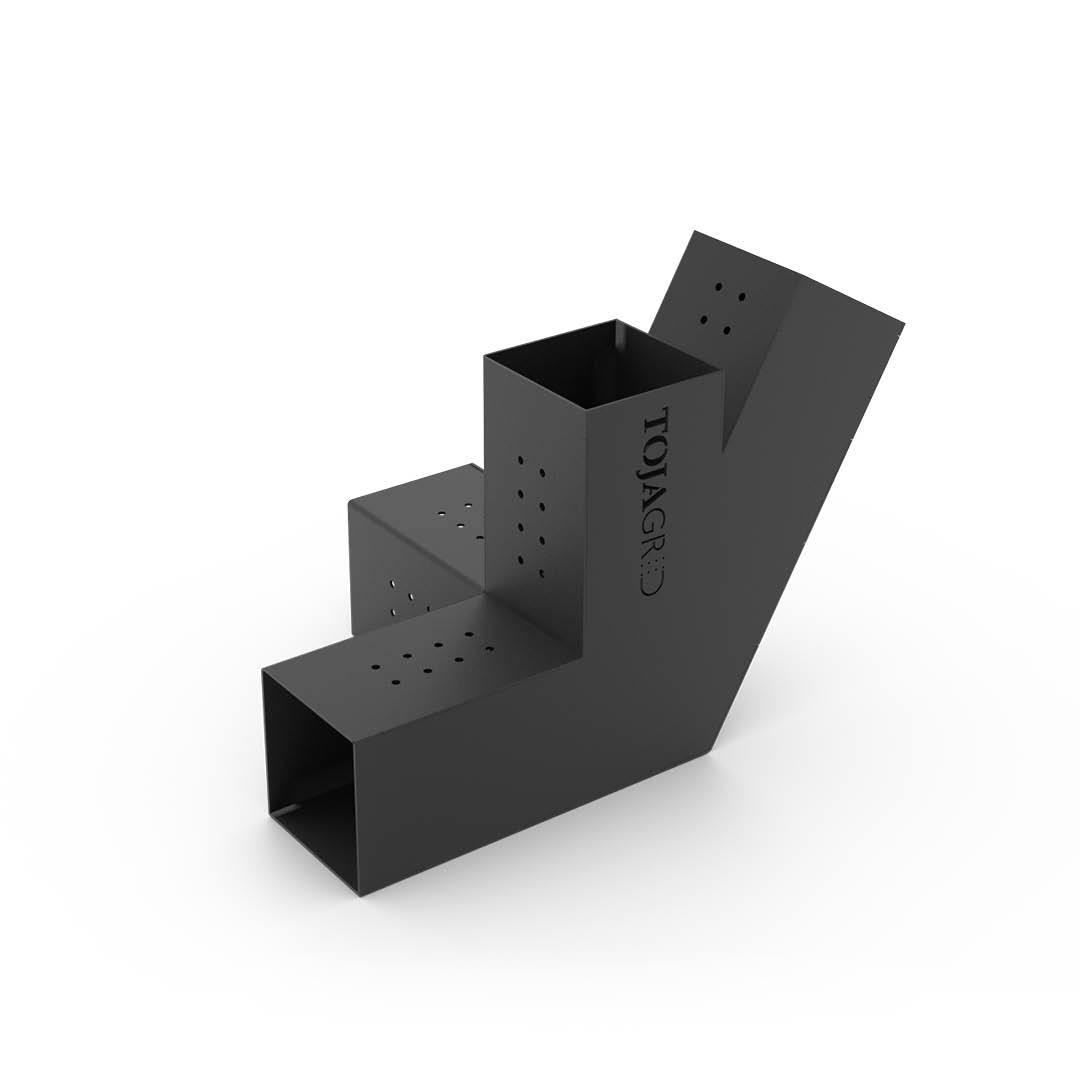

TRIO 30 RIGHT

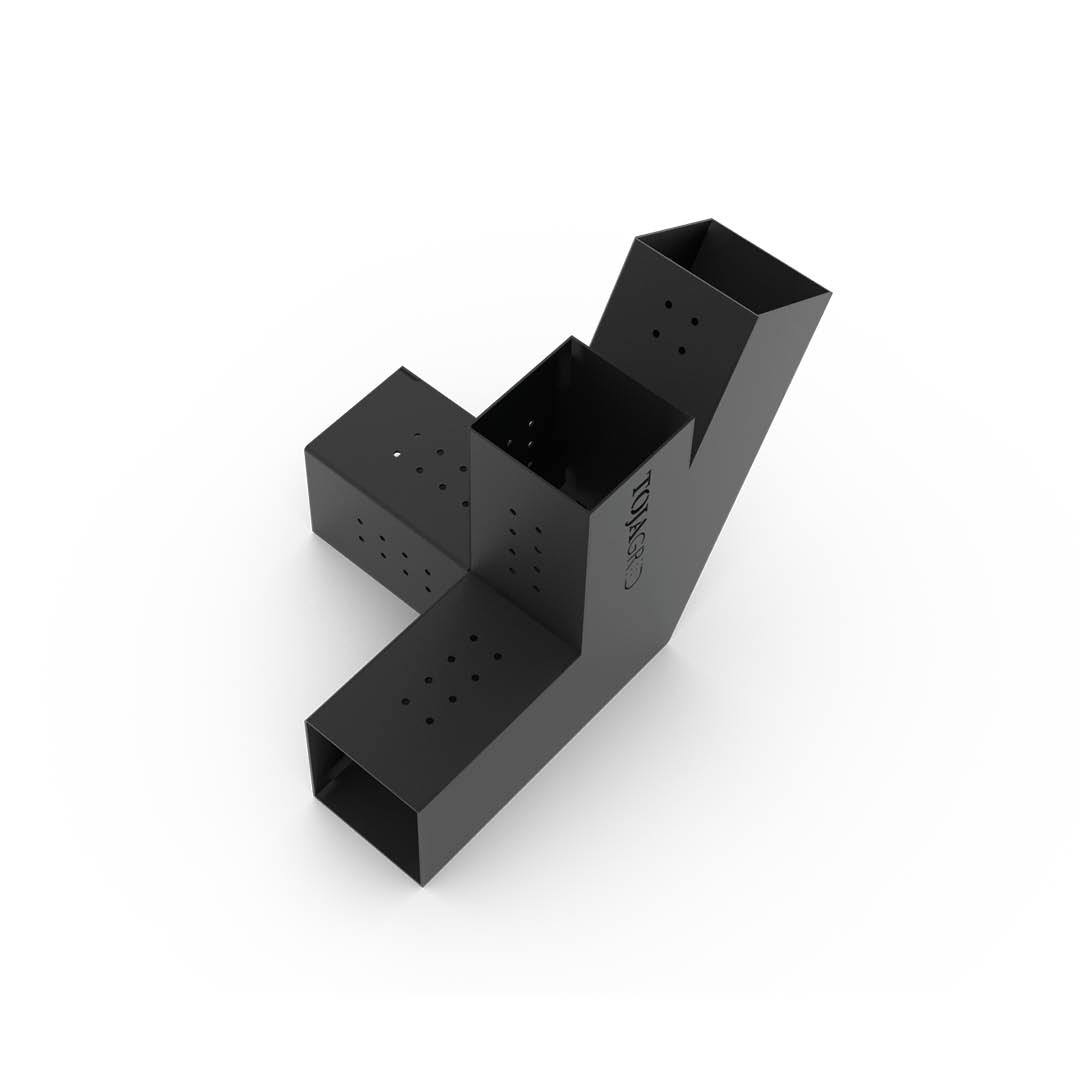

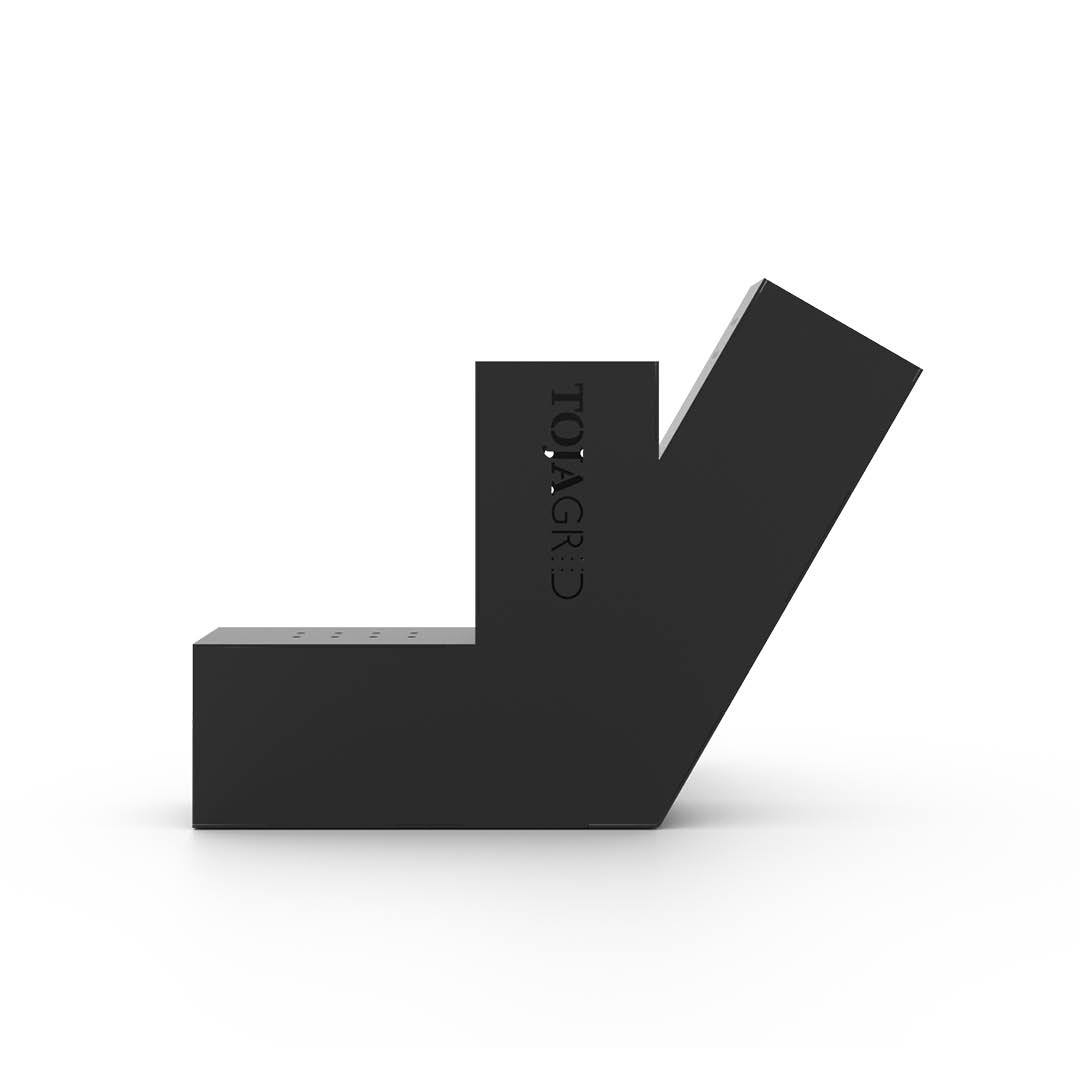

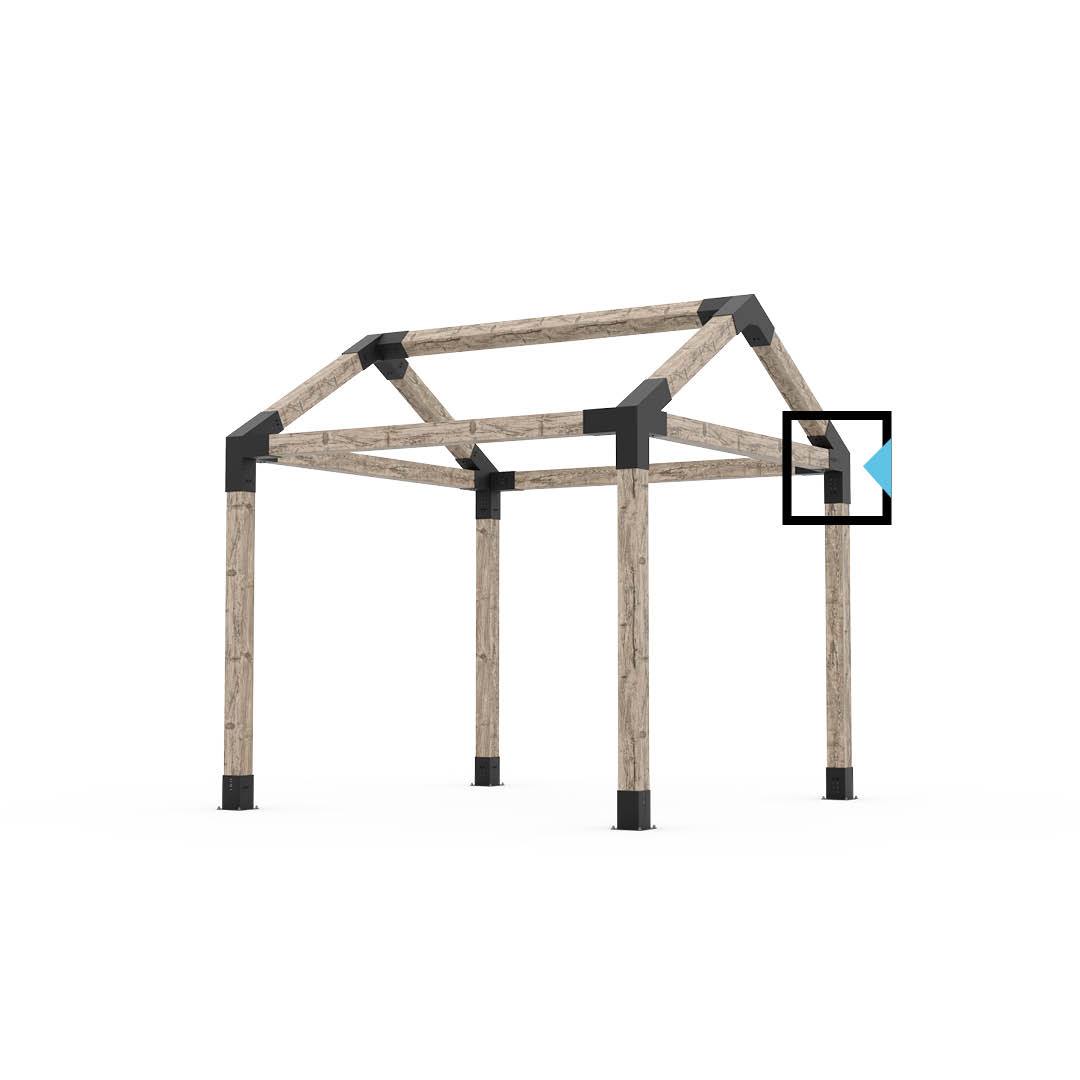

The 6x6 TRIO 30 RIGHT offers a 30˚angle for the right side of your build. This bracket pairs with the TRIO 30 LEFT, and they commonly connect into our PEAK TRIO 30, providing you with a finished peaked top.

The GRID 30 Collection was designed and developed to allow you to build an angled and peaked roof pergola. GRID 30 brackets are not structural brackets or intended to have fixed roofs, customization or anything outside the intended and indicated use of pergola as shown. For anything outside our recommendation, we advise consulting with an engineer. Always check your local building codes, HOA, and municipal requirements in advance of building as they vary by city/state and region.

Toja Tip: Ensure lumber is fully inserted into the bracket cavity, resting on metal tabs for proper installation.

Peaked Roof Calculator for 6x6 Lumber

Take advantage of this lumber calculator to help guide you with your peaked roof pergola build from the GRID 30 Collection. Just enter the length/span of lumber (A) to determine the length/span for lumber required for peaked roof (B). Enter the length of lumber (C) to determine the total overall height (D) of your build.

A
What is your starting length/span of lumber? inch ( ft.)

B
The Length/Span of lumber will be inch ( ft.)


C
What is your length/height of lumber? inch ( ft.)

D
Overall pergola height will be inch ( ft.)

Angled Roof Lumber Calculator

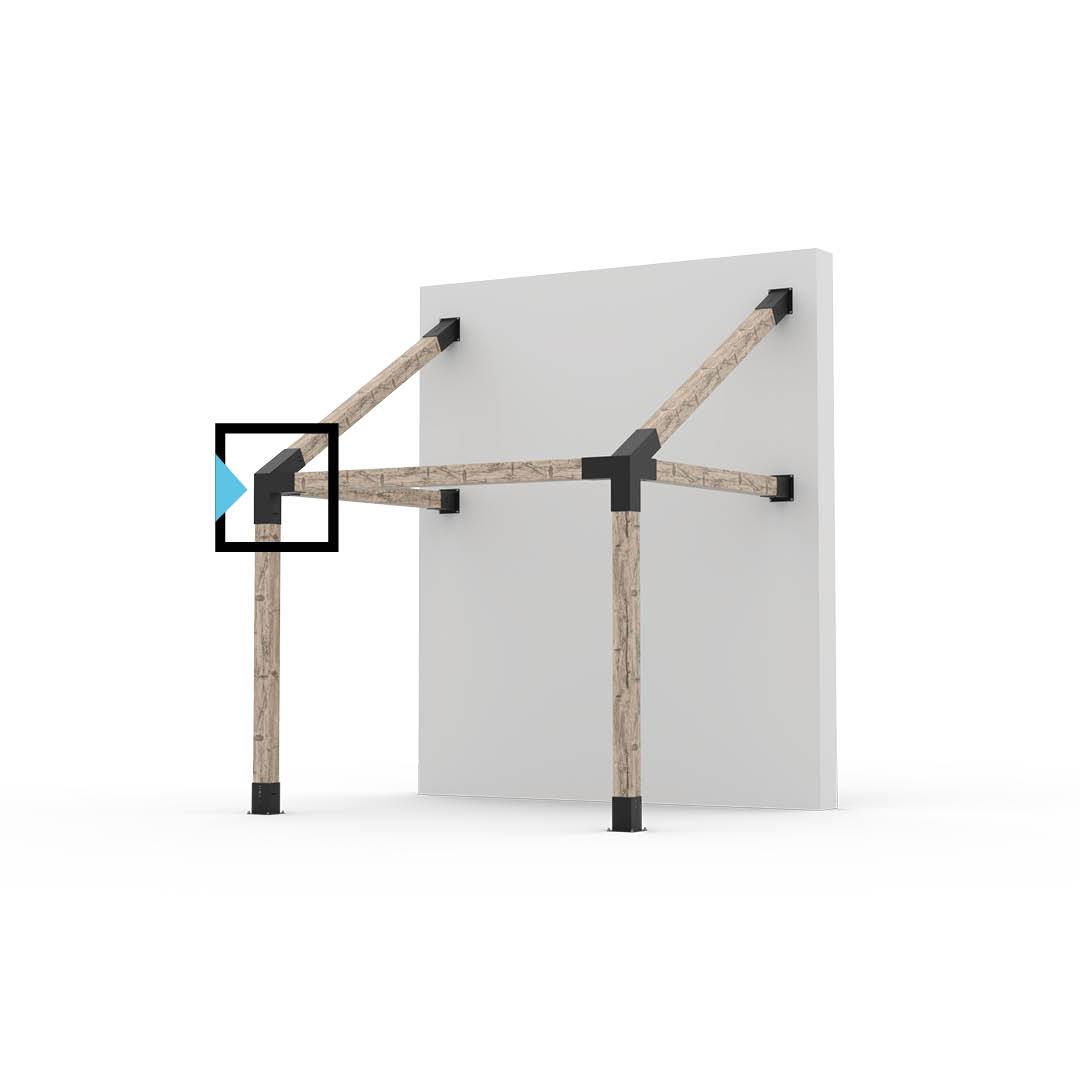

Take advantage of this lumber calculator to help guide you with your angled roof pergola build from the GRID 30 Collection. Just enter the length/span of lumber (A) to determine the length/span for lumber required for peaked roof (B). Enter the length of lumber (C) to determine the total overall height (D) of your build.

A
What is your starting length/span of lumber? inch ( ft.)

B
The Length/Span of lumber will be inch ( ft.)


C
What is your length/height of lumber? inch ( ft.)

D
Overall pergola height will be inch ( ft.)

INCLUDED

  • 1x TRIO 30 Right
  • 1-1/2” Pan Rob/Phil combo drive 304 S.S Wood screws with Black plastic head caps

NOT INCLUDED

  • Wood
    Shipping wood is costly. Most of the population has access to stores that sell wood locally where they live. Buying your lumber allows you the freedom to select the type of wood you want to use for your build and budget. There are also regional limitations for what kind of lumber is ideal for your build; different species of lumber would be used in tropical climate vs. a cold one.

FEATURES

  • 12-gauge Canadian Steel
  • Canadian Made Brackets
  • Weather-Ready: Coated in weather-resistant materials
  • Laser-cut, bent, and welded
  • All hardware, to secure to lumber, is included
  • Packaged with #12x1-1/2” Pan Rob/Phil combo drive 304 S.S Wood screws with black plastic head caps
  • 5-year limited warranty

SPECS

  • Category: 6x6
  • Arm Opening (Interior): 5.62” x 5.62”
  • Arm Opening (Exterior): 5.828” x 5.828”
  • Arm Height: 9”
  • Gauge: 12-gauge Canadian Steel
  • Colour: Black
  • Fastening Holes: 0.25”
  • Securing Holes: 0.5”

TIPS



GENERAL

We recommend taking a bracket with you when you purchase your wood to test fit.


WOOD

Our 6x6 brackets accommodate dressed lumber, commonly called 6x6’s at local building supplies. The actual measure is 5.5x5.5”.


SCREWS

  • Each bracket only requires 2 screws per each side/set of eight holes.
  • Insert screws in holes closest to the wood.
  • Hardware to secure to wood is included.
  • Additional screws are available for purchase
